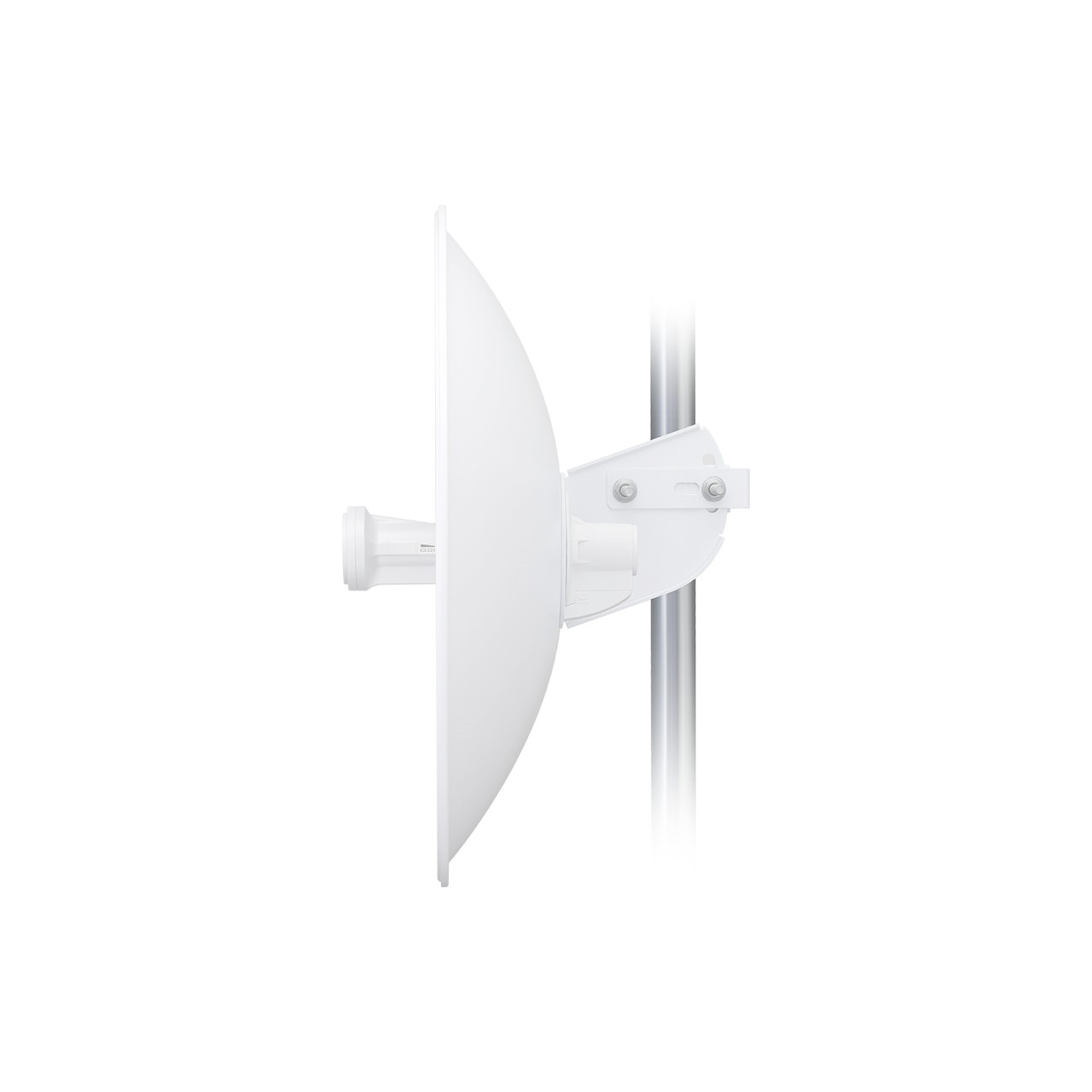

UBNT POWERBEAM 5AC

PBE-5AC-GEN2

• Dimensions: 420 x 420 x 230 mm (16.5 x 16.5 x 9.1”)
• Weight: 2.2 kg (4.9 lb)
• Enclosure Material: UV-stabilized plastic, powder-coated SPCC
• Wind Loading: 380 N at 200 km/h (85.4 lbf at 125 mph)
• Wind Survivability: 200 km/h (125 mph)
• Mounting: Pole mount kit (Included)
• Networking Interface: (1) GbE RJ45 port
• Power Method: Passive PoE 2-pair (4, 5+; 7, 8 return)
• Max. Power Consumption: 8.5 W
• Supported Voltage Range: 20—27 V DC
• Power Supply: 24 V, 0.5 A gigabit PoE adapter (Included)
• ESD/EMP Protection: Air/contact: ± 24 kV
• LEDs: (1) Power, (1) LAN, (4) WLAN
• Salt Fog Test: IEC 68-2-11 (ASTM B117) Equivalent: MIL-STD-810 G method 509.5
• Vibration Test: IEC 68-2-6
• Temperature Shock Test: IEC 68-2-14
• UV Test: IEC 68-2-5 at 40° C (104° F) Equivalent: ETS 300 019-1-4
• Wind-driven Rain Test: ETS 300 019-1-4 Equivalent: MIL-STD-810 G method 506.5
• Ambient Operating Temperature: -40 to 70 °C (-40 to 158 °F)
• Ambient Operating Humidity: 5 to 95% noncondensing
• Certifications: CE, FCC, IC, RoHS
• Gain: 25 dBi
• Channel Sizes: PtP Mode: 10/20/30/40/50/60/80 MHz — PtMP Mode: 10/20/30/40 MHz
• Operating Frequency (MHz) — Worldwide: 5150-5875 MHz
• Operating Frequency (MHz) — USA: U-NII-1: 5150-5250 MHz, U-NII-2A: 5250-5350 MHz, U-NII-2C: 5240-5725 MHz, U-NII-3: 5725-5850 MHz
• Management Radio (MHz) — Worldwide: 2412 - 2472 MHz
• Management Radio (MHz) — US/CA: 2412 - 2462 MHz
